Pull Cord Control
Units are fitted with a 1m Long Pull Cord as standard as well as an LED power on indicator.
An optional 5mm diameter White Acrylic Pull Rod to replace the cord is also available.
Consideration should be given to ensure that when selected, the integral pull cord is reachable. Remote switching may be preferable.
Standard finish is white RAL 9010, other internal and external painted finishes are available, dependent upon volume, for painted options lead time may be extended.
It is possible to have dual colours, e.g. white inside/brown outside

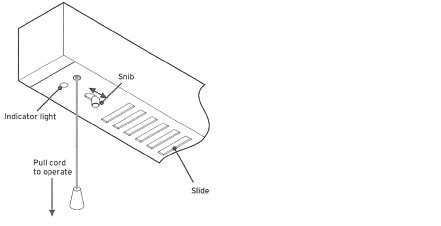

Units can be either left or right hand, viewed from the inside of the window.
Right denotes the location the Snib, pull cord and indicator light are at.
Cable entry can either be from the front face or from the end plate.
End Cable Entry
Generally used where cables are being buried into the wall or hidden by the soffit plates.
Front Cable Entry
Generally used where cables are running inside surface mounted trunking.
